BRTR07WDS5PC/FC

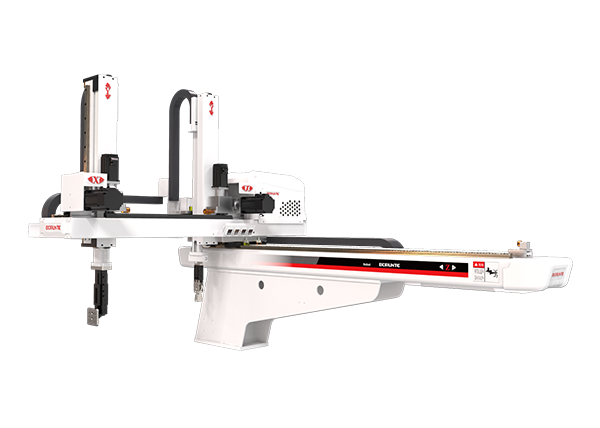

BRTR07WDS5PC/FC series is suitable for 50T-200T horizontal injection molding machine to take out the finished product and nozzle, arm form telescopic stage, two-arm, five-axis AC servo drive, can be used for quick removal or in-mold sticking, in-mold inserts and other special product applications. Accurate positioning, high speed, long life, and low failure rate. After installing the manipulator can increase production capacity (10-30%) and will reduce the defective rate of products, ensure the safety of operators, and reduce manpower. Accurately control production, reduce waste and ensure delivery. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, multi-axis can be controlled at the same time, simple equipment maintenance, and low failure rate.
| Power Source(kVA) | Recommendedl.M.M (ton) | Traverse Driven | Model of EOAT |
| 5.38 | 50T-200T | AC Servo motor | four suctions two fixtures |
| Traverser Stroke (mm) | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max.loading (kg) |
| 1300 | P:370-R:370 | 750 | 3 |
| Dry Take Out Time (sec) | Dry Cycle Time (sec) | Air Consumption (NI/cycle) | Weight(kg) |
| 1.43 | 5.59 | 4 | 230 |
Model representation: W:Telescopic type. D:Product arm +runner arm. S5:Five-axis driven by AC Servo Motor(Traverse-axis、Vertical-axis+Crosswise-axis).
The above-mentioned cycle time are the results of our company’s internal test standard. In the actual application process of the machine, they will vary according to the actual operation.

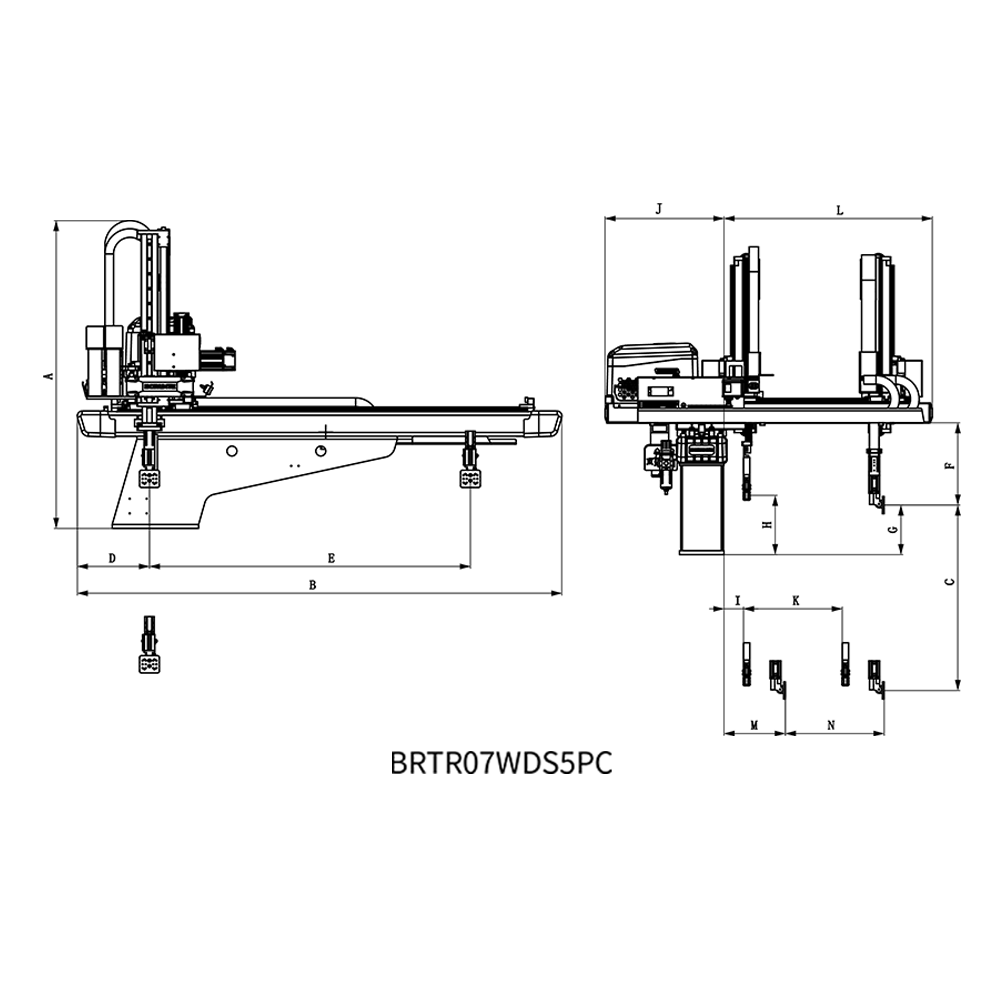

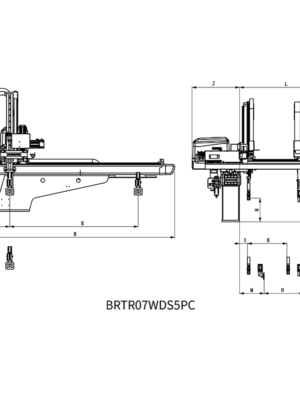

| A | B | C | D | E |
| 1245 | 1962.5 | 750 | 292 | 1300 |
| F | G | H | I | J |
| 333 | 200 | 240 | 80 | 482 |
| K | L | M | N | |
| 370 | 844 | 278 | 370 |
