BRTUS0805AQQ

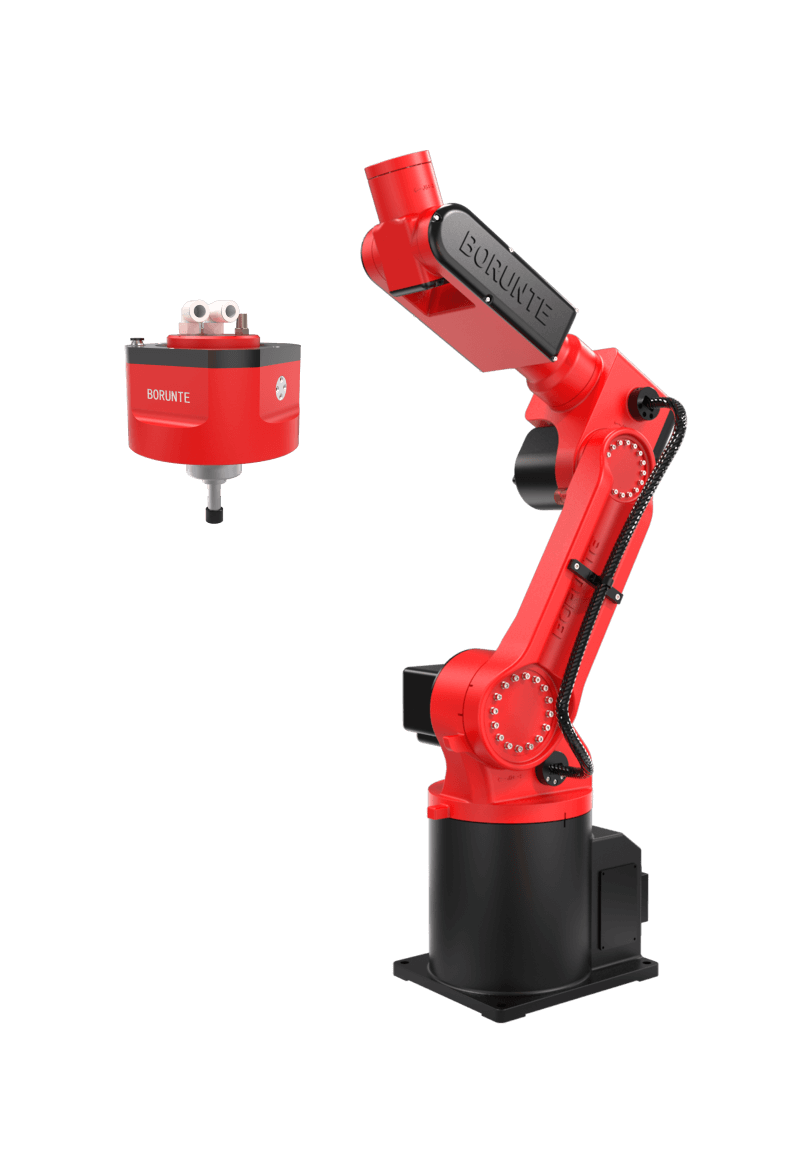

BRTIRUS0805A type robot is a six-axis robot developed by BORUNTE. The whole operation system is simple, compact structure, high position accuracy and has good dynamic performance. The load ability is 5kg, especially suitable for injection molding, taking, stamping, handling, loading and unloading, assembly, etc. It is suitable for injection molding machine range from 30T-250T. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accuracy is ±0.05mm.
Arm Length(mm)：940
Repeatability(mm)：±0.05
Loading Ability(kg)：5
Power Source(kVA)：3.42
Weight(kg)：约53
| Item | Range | Max.Speed | |
| Arm | J1 | ±170° | 237°/s |
| J2 | -98°/+80° | 267°/s | |
| J3 | -80°/+95° | 370°/s | |
| Wrist | J4 | ±180° | 337°/s |
| J5 | ±120° | 600°/s | |
| J6 | ±360° | 588°/s | |
Tool Detail
BORUNTE pneumatic floating pneumatic spindleis designed to remove small contour burrs and moldgaps.lt uses gas pressure to adjust the lateral swingforce of the spindle, making the radial output forceof the spindle. By adjusting the radial force throughan electrical proportional valve and adjusting thecorresponding spindle speed through pressure regulation, the goal of high-speed polishing is achieved.Generally,it needs to be used in coniunction withelectrical proportional valves.It can be used to remove fine burrs on iniectionmolding,aluminum iron alloy parts, small moldseams, and edges
| Items | Parameters | Items | Parameters |
| Weight | 4KG | Radial floating | ±5° |
| Floating force range | 40-180N | No-load speed | 60000RPM(6bar) |
| Collet size | 6mm | Rotation direction | Clockwise |
