Borunte Robot Co., Ltd. is one of the most reliable manufacturers and suppliers of large five axis sevro robot in China, also supports customized service with low price. Please feel free to wholesale advanced large five axis sevro robot for sale here from our factory.
BRTN24WSS5PC
Product lntroduction
An electrically driven, flexible robotic arm that can replace manual labor and boost productivity.

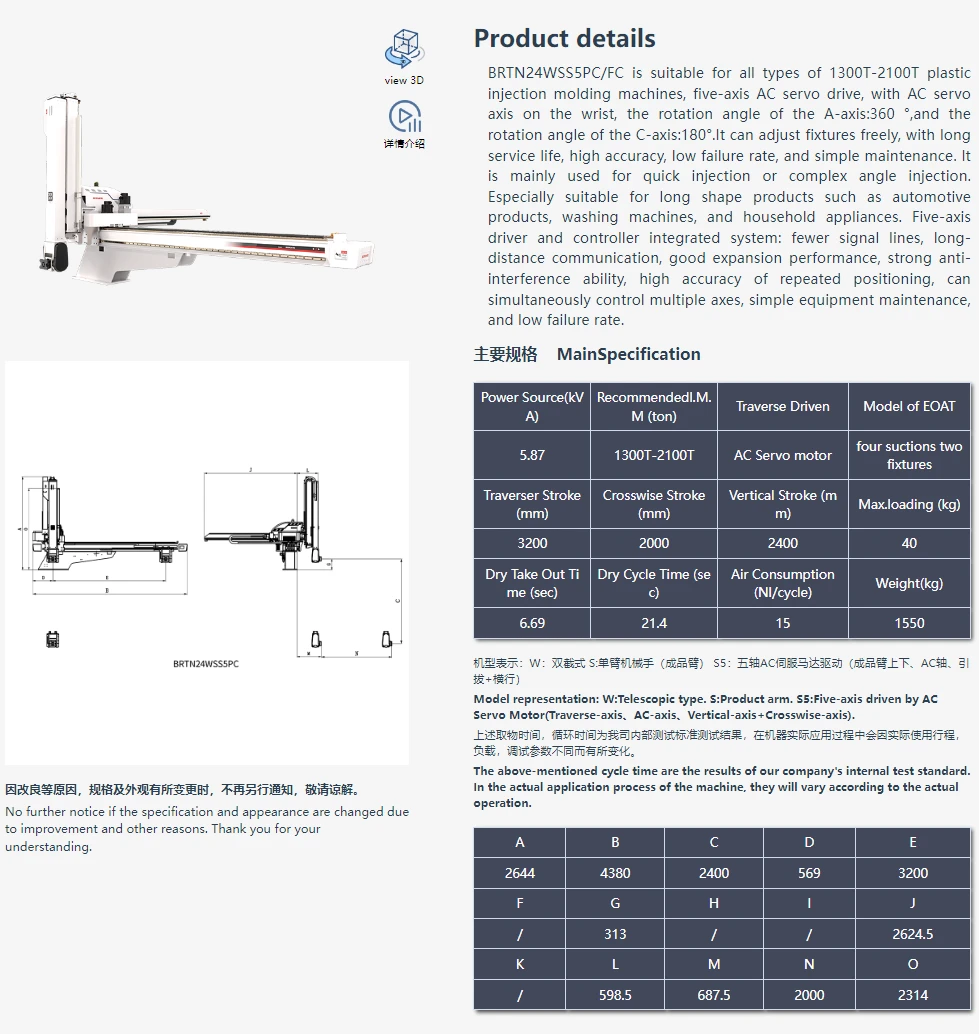

Product parameter(specification)
| Model | Power Source(KVA) | Dry Take Out Time(sec) | Dry Cycle Time(sec) | Traverse Driven | Air Consumption(Nl/cycle) | Model of MOAT |
| BRTN24WSS5PC | 5.87 | 6.69 | 21.4 | AC Servo motor | 15 | Four suction tray and two fixture |
Product feature and application
This manipulator is suitable for various types of plastic injection molding machines of 1300T-2100T, which can be conveniently and efficiently take up such as Motorcycle driving helmet, toys, instrument panel, wheel cover, bumper and other control decorative surface panels and shells in the injection molding industry.
Common problems and solutions
| Phenomenon | Reason | Analysis | Solve |
| Click to ring | When closing the manipulator, pull the manipulator with your hand, causing the manipulator to shake | The bolt on the joint of the manipulator is loosened due to overload and impact | Check whether the bolts of all parts are loose, including motor bolts, reducer bolts and connecting bolts. If so, tighten them. |
| Electric machine overheating | The temperature of the working environment of the manipulator rises or the servo motor is covered by the object | Temperature rises due to ambient temperature rise or motor heat loss
|
Adjust the program to reduce the load |
| Manipulator control program or load change | The program or load is beyond the range of the manipulator | Adjust the program to reduce the load | |
| Changes in parameters imported into the controller cause the motor to overheat |
The imported parameters do not conform to the manipulator model |
Import the correct parameters | |
| Air pressure is insufficient | The negative pressure switch indicates insufficient pressure | Check the air pressure of the main air source and whether the air pipe is worn and leaking or folded | Adjust the pressure of the main air source and check the phenomenon of tube breaking |
