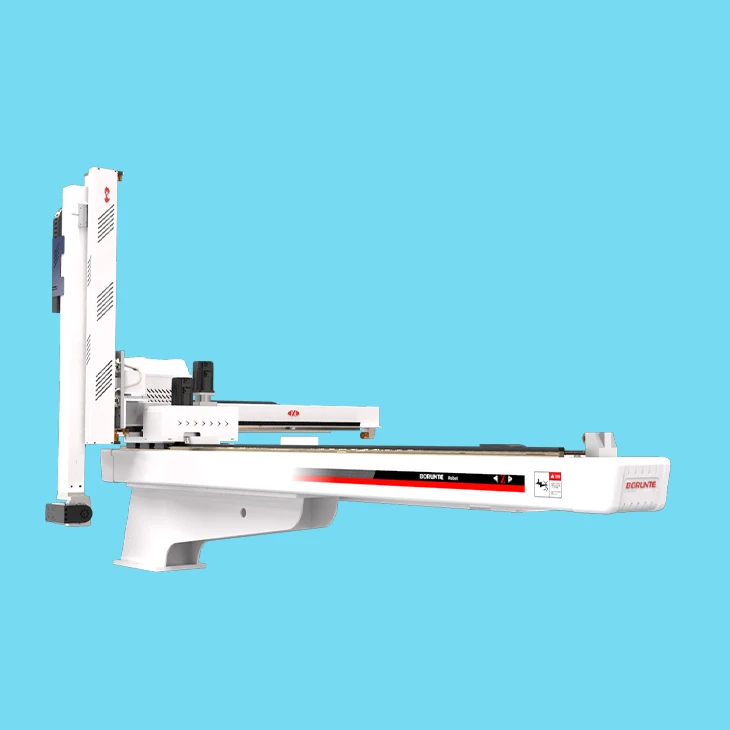

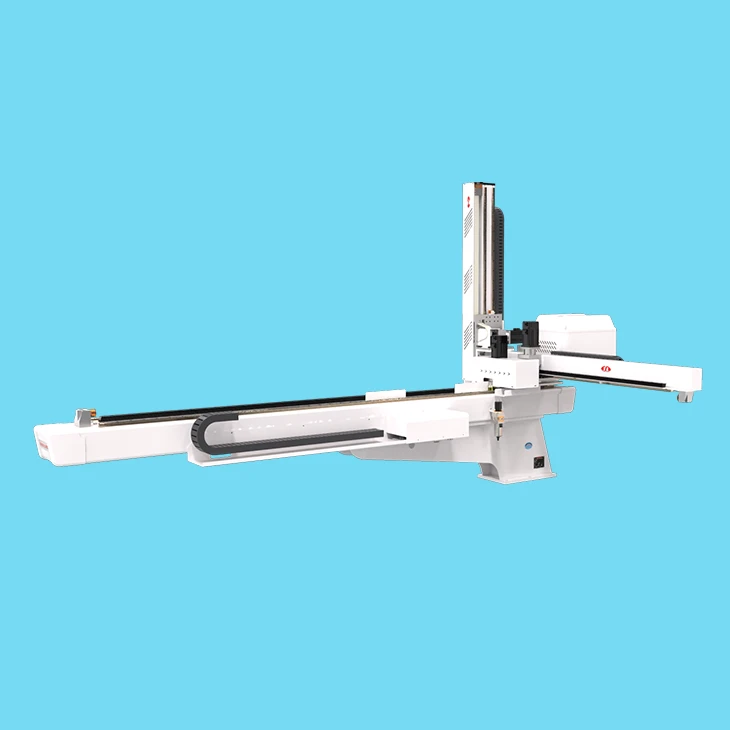

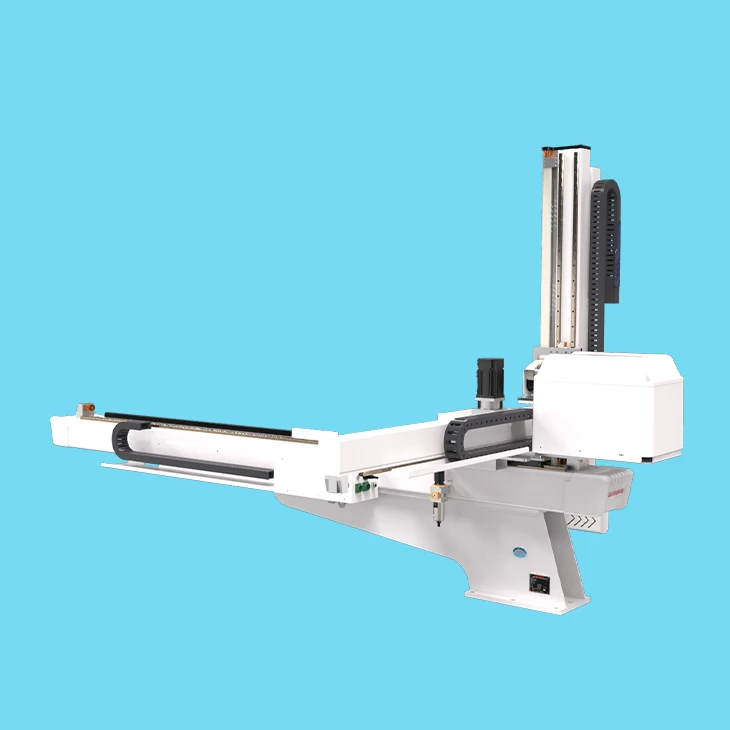

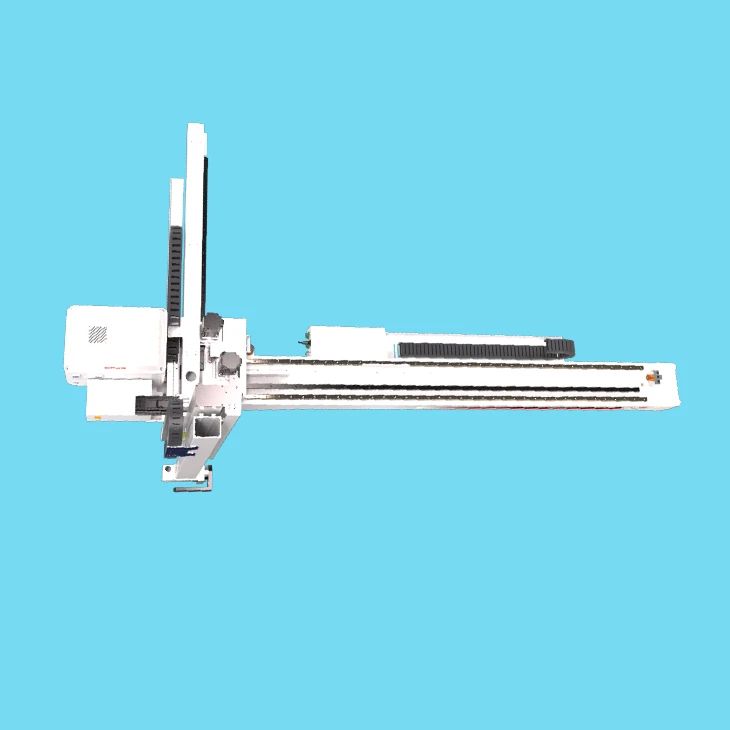

High Loading Ability Manipulator Arm

BRTNN15WSS4PF

Product description:

High loading ability manipulator arm is a four-axis manipulator with a vertical stroke of 1500mm and a load of 15 kg. It is called linear module, electric sliding table, etc. It is a mechanical structure that can provide linear motion. At the same time, it can complete more complex work through combination. The name also shows that it can complete the specified work modular.

Using cases of high loading ability manipulator arm:

The product is suitable for taking out the finished product and nozzle of 470T-800T horizontal injection molding machine. It is especially suitable for taking out large injection molding objects, such as home appliances, automobile body panels, refrigerator lining, air conditioning shell, printer body, camera shell, TV shell and other soft rubber parts.

How to solve the problems may happened in use robot:

Error Inform 4 : The wrong number is 01: DaisInAndDaisOutLmtOn

Reasons : Rotate in limit signal and rotate out limit signal are both on.

Solution : 1. Check rotate in/out limit signal. 2. Check connections in IO board.

Error Inform 5 : The wrong number is 02 UpLmtOn

Reasons : After arm descends, the up-limit signal is still on.

Solution : Has arm descended? If yes, 1. Check up-limit signal. If no, 2. Check arm descend output signal. 3. Check air pressure.

Maintenance operation content of high loading ability manipulator arm:

According to the nature of maintenance operations can be divided into: cleaning, inspection, fastening, lubrication, adjustment, inspection and replenishment operations. The inspection operation shall be performed by the maintenance personnel of the client side or with the cooperation of the technical personnel of the company.

Cleaning, inspection and replenishment operations are generally performed by equipment operators.

Fastening, adjustment and lubrication are generally performed by mechanics.

Electrical work shall be performed by professionals.
