Borunte Robot Co., Ltd. is one of the most reliable manufacturers and suppliers of industrial materials stacking robot arm in China, also supports customized service with low price. Please feel free to wholesale advanced industrial materials stacking robot arm for sale here from our factory.
BRTIRPZ1825A
Product description:

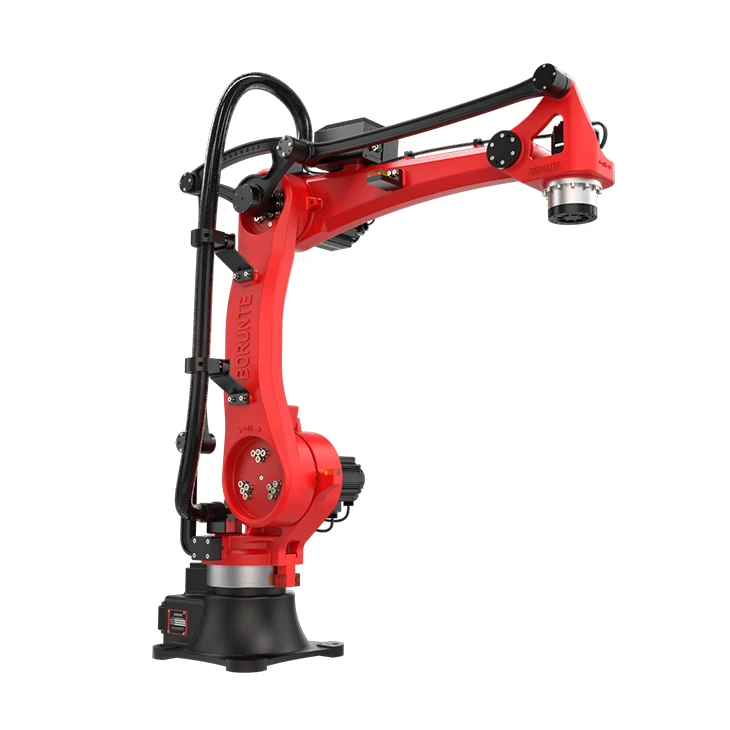

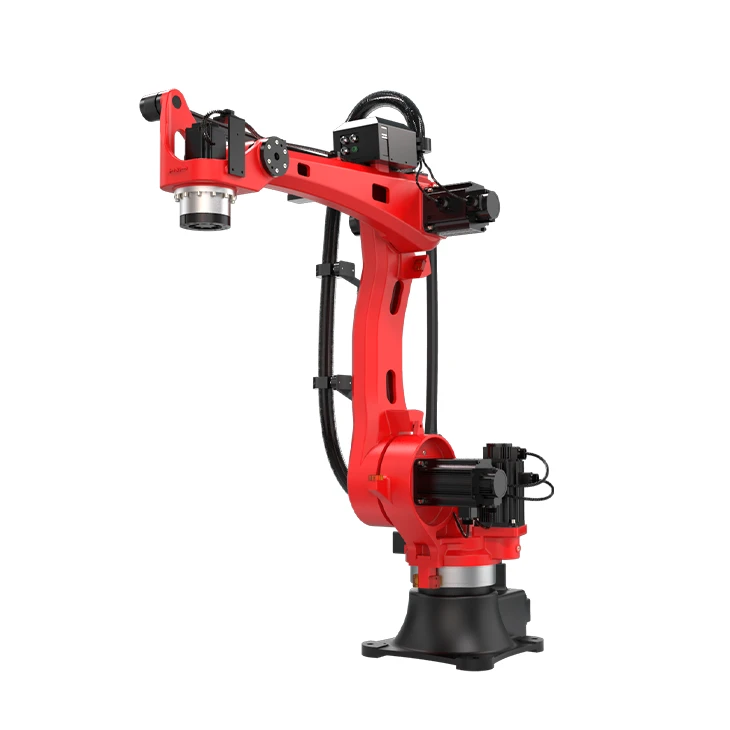

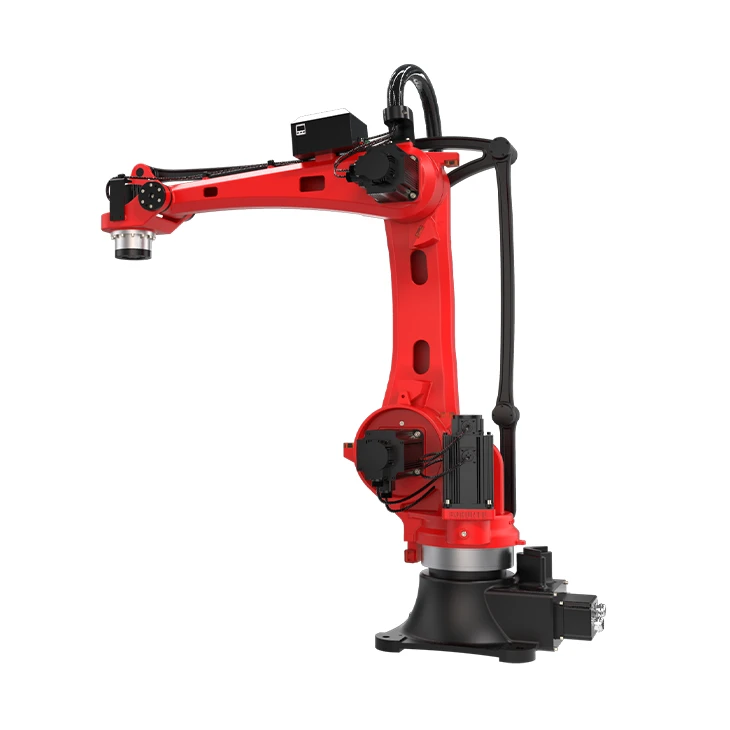

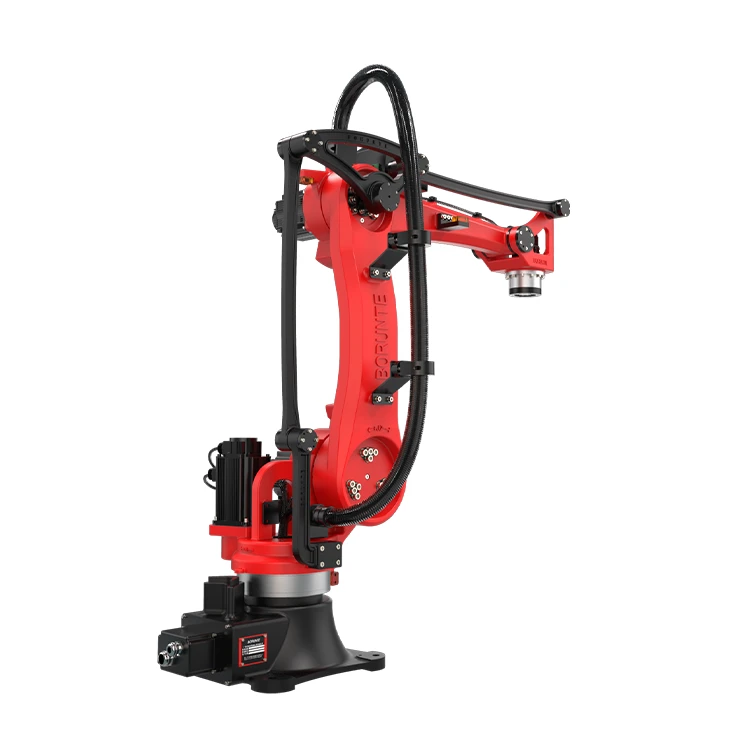

BORUNTE’s industrial materials stacking robot arm is a four-axis robot designed for tedious, frequent, and repetitive long-term activities or operations in hazardous and difficult situations. The maximum length of the arm is 1800mm. The maximum load capacity is 25KG. It is adaptable and has several degrees of freedom. Suitable for loading and unloading, handling, disassembling, and stacking, amongst other things. The level of protection is IP40. The repetition placement precision is ±0.08mm.
Significant features of industrial materials stacking robot arm:
Sturdy and durable, with little component use, good dependability, and extended maintenance intervals;
Fast speed – enhances the robot’s acceleration and deceleration capabilities, reducing working cycle time.
High precision – consistent part manufacturing quality with optimum trajectory and repeatable positioning accuracy;
Durable and strong – ideal for tough manufacturing situations
Universality – Good universality, useful for a variety of jobs. For example, replacing a robot’s end effectors (claws, tools, etc.) may accomplish a variety of jobs.
Programmable – It can be reprogrammed to meet the changing demands of their working environment, allowing it to play an important part in the flexible production process of small batch variants.
Usage of four axis robot:
Four axis handling robot is mainly use to replace people in industrial production to do the monotonous, frequent and repeated long-time operations, or operations in dangerous and harsh environments
Application cases of BRTIRPZ1825A
(1). Handling (2). Stacking (3). Stamping (4). Injection molding (5). Assembling, etc.
Such as handling, stacking, destacking, stamping, loading and unloading and other scenes, as well as in packaging, food, beverage, chemical and other fields, to complete the handling or process operations of materials harmful to human body, so as to perfect the loading and unloading process. Flexible installation mode.
Using craft programming to learning industrial materials stacking robot arm:
Description：
1. Use stacking, insert palletizing parameters.
2. Select the created pallet number to be called, insert the code to teach before the action.
3. Pallet with settings, please set the actual situation, otherwise the default.
4. Pallet type: Only the parameters of the selected pallet class are displayed. When inserting, the palletizing or depalletizing selection is displayed. Palletizing is from low to high, while depalletizing from high to low.
