BRTIRPZ2080A Four axis robot
BRTIRPZ2080A is a four-axis column palletizing robot developed by BORUNTE ROBOT CO., LTD. for certain monotonous, frequent, and repetitive long-term operations, or operations in dangerous and harsh environments. It has a 2000mm arm span and a maximum load of 80kg. The flexibility of multiple degrees of freedom can handle scenarios such as loading and unloading, handling, unpacking, and palletizing with ease. The protection grade reaches IP40. The repeat positioning accuracy is ±0.15mm.
Main Specification
Arm Length (mm)：2000
Repeatability (mm)：±0.15
Loading Ability (KG)：80
Power Source (KVA)：6
Weight (KG)：624.3

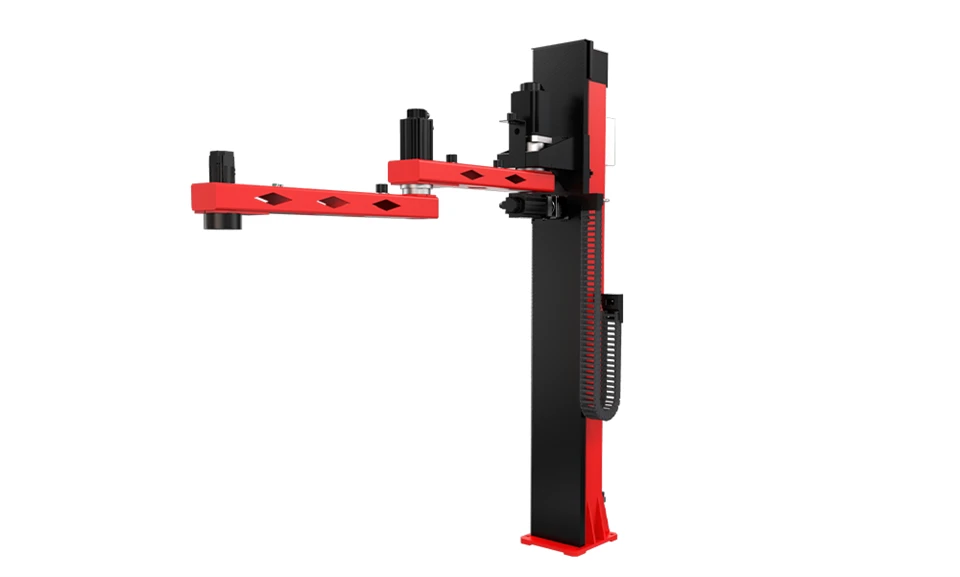

Large loading ability four axis column palletizing robot BRTIRPZ2080A
Product Introduction
BRTIRPZ2080A is a four axis column palletizing robot developed by BORUNTE ROBOT CO.,LTD. for certain monotonous, frequent, and repetitive long-term operations, or operations in dangerous and harsh environments. It has a 2000mm arm span, a maximum load of 80kg, a standard cycle time of 5.2 seconds (80kg load, stroke of 400-2000-400mm), and a palletizing speed of 300-500 times/hour. The flexibility of multiple degrees of freedom can handle scenarios such as loading and unloading, handling, unpacking, and palletizing with ease. The protection grade reaches IP40. The repeat positioning accuracy is ±0.15mm.
Accurate Positioning Fast Long Service Life Low Failure Rate Reduce labor
Basic Parameters
| Item | Range | Max speed | |
| Arm | J1 | ±100° | 129.6° |
| J2 | 1800mm | 222mm/s | |
| J3 | ±145° | 160°/s | |
| Wrist | J4 | ±360° | 296°/s |
| Stacking speed | Rhythm (s) | Vertical stroke | Maximum stacking height |
| 300-500 time/hour | 5.2 | 1800mm | 1700mm |
What are the advantages of the four axis column palletizing robot?
1. High efficiency and smooth operation
The environment in which palletizing robots are used is generally spacious, which can meet the simultaneous production of multiple production lines. The robotic arm has an independent connection mechanism, and the running trajectory ensures the stability of the machine, thus achieving high efficiency in transmission.
2. Good palletizing effect
The palletizer is programmable, with simple and effective program settings, precise and simple equipment accessories, and mature technology. Therefore, the palletizing effect is very good, with a wide range of operations and stable performance. It can meet the needs of business owners in various industries in terms of palletizing effect.
3. Widely applicable
The palletizing robot has a wide range of applications, with excellent performance in bagged materials, cardboard boxes, barrels, etc. It can also handle various specifications of products with ease, and the palletizing efficiency can be adjusted, making it widely used.
4. Energy saving and stable equipment
The main components of the palletizing robot are all located in the base below the robotic arm. The upper arm operates flexibly, with low overall power, energy efficiency, and environmental friendliness. Even when operating, it still completes various tasks with low loss and is very stable.
5. Simple and easy to understand operation
The program settings of the fully automatic palletizing robot are very easy to understand, with visual operation editing. Generally, the operator only needs to set the palletizing position of the material and the placement position of the pallet, and then complete the trajectory setting of the robotic arm. These operations are all completed on the touch screen on the controllable cabinet. Even if the customer needs to change the material and palletizing position in the future, it will be done by drawing a gourd, which is simple and easy to understand.
