Automatic Take Out Servo Manipulator

Borunte Robot Co., Ltd. is one of the most reliable manufacturers and suppliers of automatic take out servo manipulator in China, also supports customized service with low price. Please feel free to wholesale advanced automatic take out servo manipulator for sale here from our factory.



BRTN17WSS5PC

Product description:

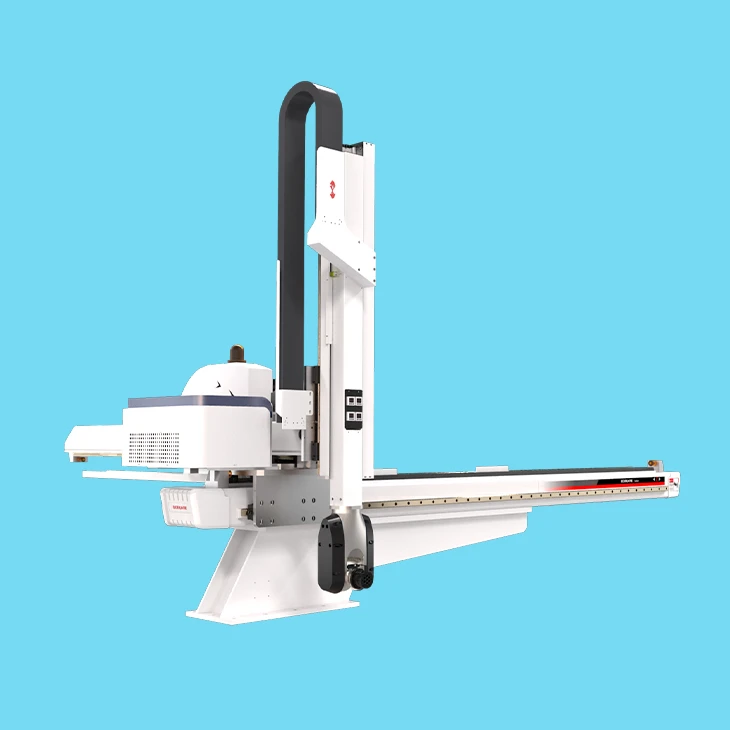

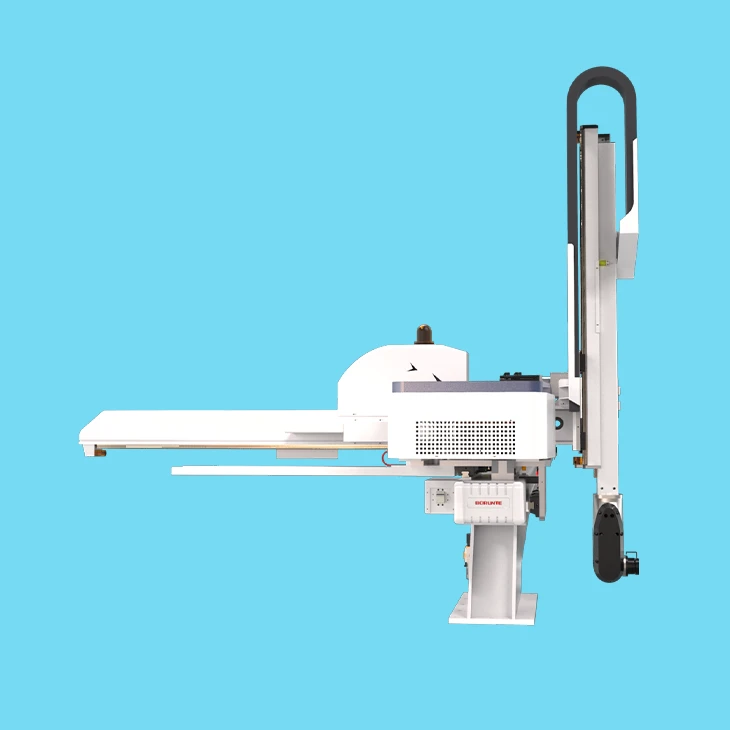

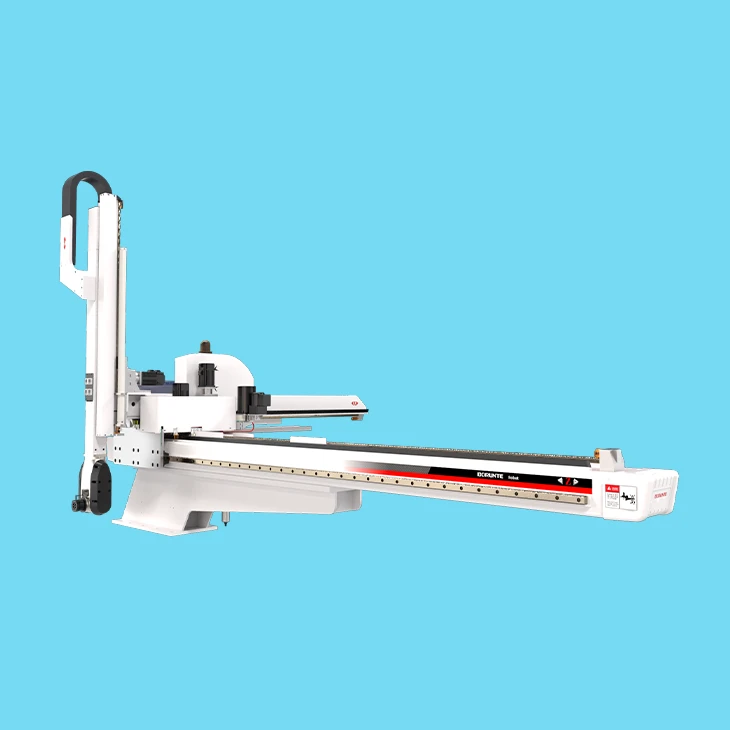

Automatic take out servo manipulator applies to various types of 600T-1300T plastic injection molding machines, five-axis AC servo drive, with AC servo axis on the wrist. The rotation angle of the A-axis: 360° , and the rotation angle of the C-axis:180 ° , which can locate and adjust the angle of the fixture freely. It is mainly used for quick injection or complex angle injection, especially suitable for long shape products such as automotive products, washing machines, and household appliances. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.





Several common driving methods:



1. Servo motor drive:

Servo motor is one of the commonly used driving devices in servo mechanical hands. It controls the rotation of the motor through electrical pulse signals, achieving precise position control. Servo motors have the advantages of fast response, high accuracy, and stability, making them suitable for applications with strict position requirements. Automatic take out servo manipulator is driven by the servo motor.

2. Hydraulic drive:



Hydraulic drive is another common driving method for servo robotic arms. It utilizes the high-pressure oil flow generated by the hydraulic system to control the movement of the actuator, and achieves precise position and force control by adjusting the pressure and flow rate of the hydraulic system. Hydraulic drive has the advantages of high power density, bearing large loads, and adapting to complex working conditions, and is widely used in some applications that require strong and high speed requirements.

3. Pneumatic drive:

Pneumatic drive is a method of using gas (usually compressed air) to generate power to drive a robotic arm. It achieves motion control of the robotic arm by adjusting the working status of pneumatic components such as cylinders and valves. Pneumatic drive has the advantages of fast response speed, simple structure, and low cost, making it suitable for situations where speed requirements are not high but torque and force requirements are high.



Automatic take out servo manipulator is suitable for taking out the finished product and nozzle of 600T-1300T horizontal injection molding machine.It is especially suitable for the removal of common plastic objects in the injection molding industry, such as transparent table, tea table, name card box, crystal lamp, crystal ball, picture frame, jewelry box, camera lens, telescope lens, TV screen, car lampshade, speaker panel and other injection molding products.
